OEM Systems is no longer operating. Some products can still be purchased from AudioSource in Portland Oregon. Please call 775-746-3432 or 877-715-5439.


Endeavor Cabinet Speaker - IO-570


Ohm Dial

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Endeavor
New and improved models arriving Fall 2022!

MODEL: IO-570 *Discontinued*

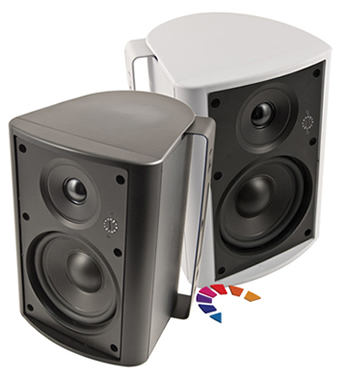

5-1/4" Commercial 2-way Cabinet Loudspeaker

70-100 Volt / 8 ohms



 DESCRIPTION
The IO-570 Indoor / Outdoor speakers are designed to stand up to the elements with rust proof grilles that look good and sound great.

5-1/4" Poly woofer with butyl rubber surround
5-1/4" 2-way acoustic suspension loudspeaker


 SPECIFICATIONS
Model Number: IO-570 - 5-1/4" 2-way Cabinet Loudspeaker 70-100 Volt
Frequency Response: 45Hz - 21kHz ± 3 dB
Power Handling: 50 watts nom. 100 max
Sensitivity: 87dB 1 watt / 1 meter
Tweeter: 1" Mylar Tweeter
Grille: Rust proof Perforated Aluminum Grille which is epoxy painted
  for long life in high humidity and coastal environments.
Cabinets, grilles and mounting brackets are paintable to match your decor.
Impedance: 70-100 Volt / 8-ohm operation
Available Colors: White (IO-570W) & Black (IO-570B)


 FEATURES
Sealed, port-less design enclosure prevents bugs and moisture from entering cabinet.

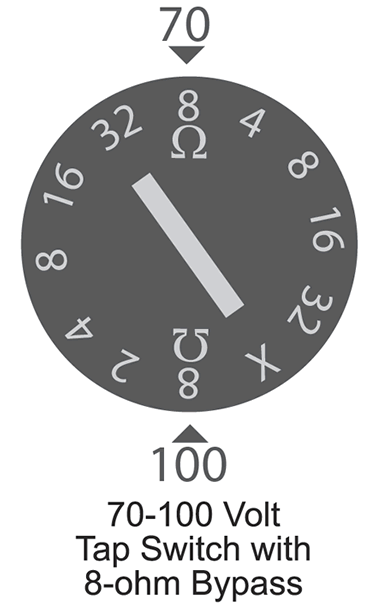

Baffle mounted 70-100 Volt tap selector switch with bypass setting for 8-ohm applications.
Versatile mounting options, includes standard type "U" bracket, and mounting bosses
on rear for optional double swivel mounting brackets
Sold and Shipped in Eaches
IO-570 Rear View

 RELATED ITEMS


SE-DBLSVL Thumbnail

  Double Swivel
Mounting Bracket




 DIMENSIONS & WEIGHTS
Enclosure: 7-1/4" W x 10" H x 7-1/2" D
  mounting bracket increases depth by 3/4"
Shipping Weight: 9 lbs. each
Net Weight:  6.6 lbs. each
